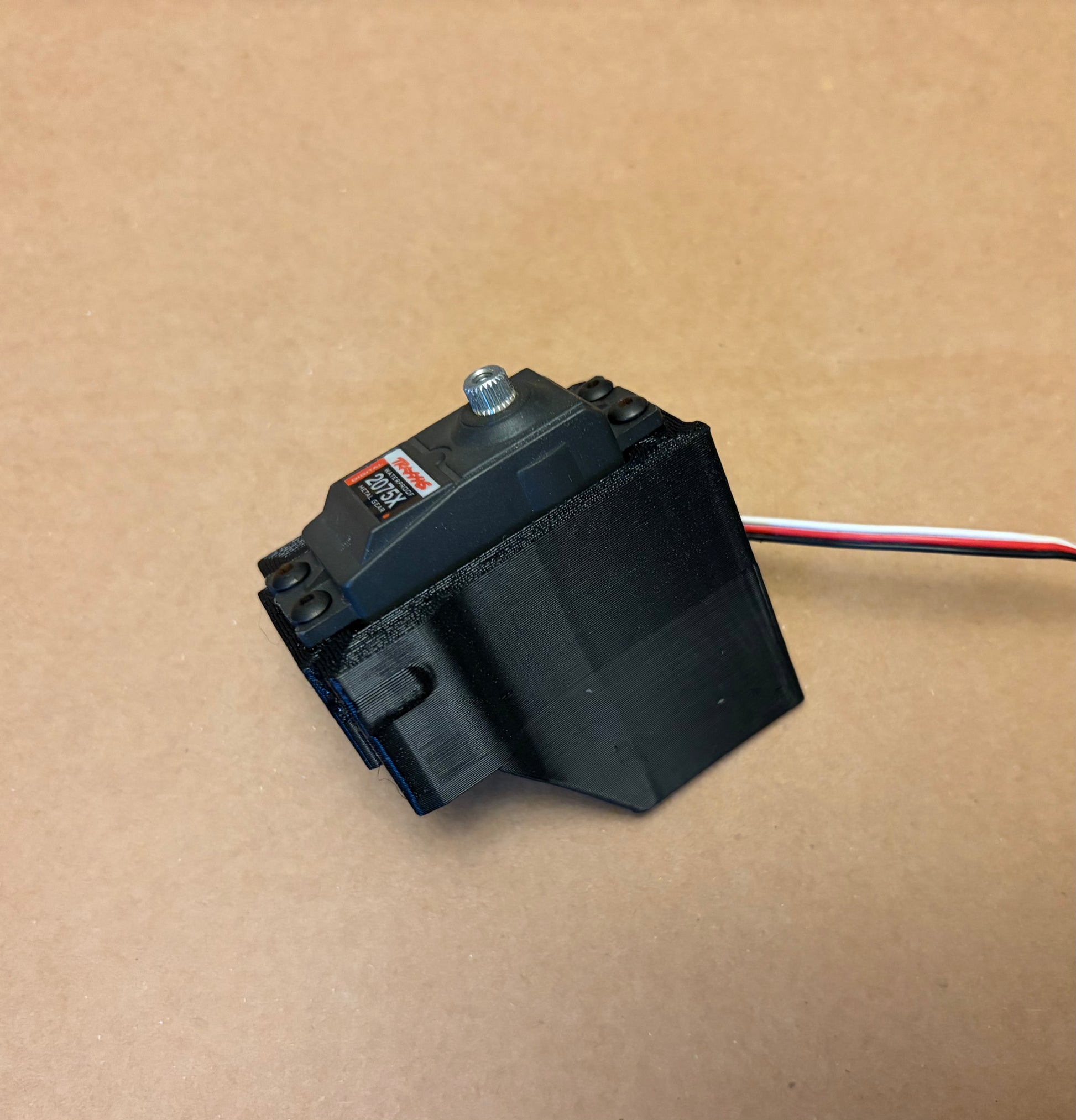

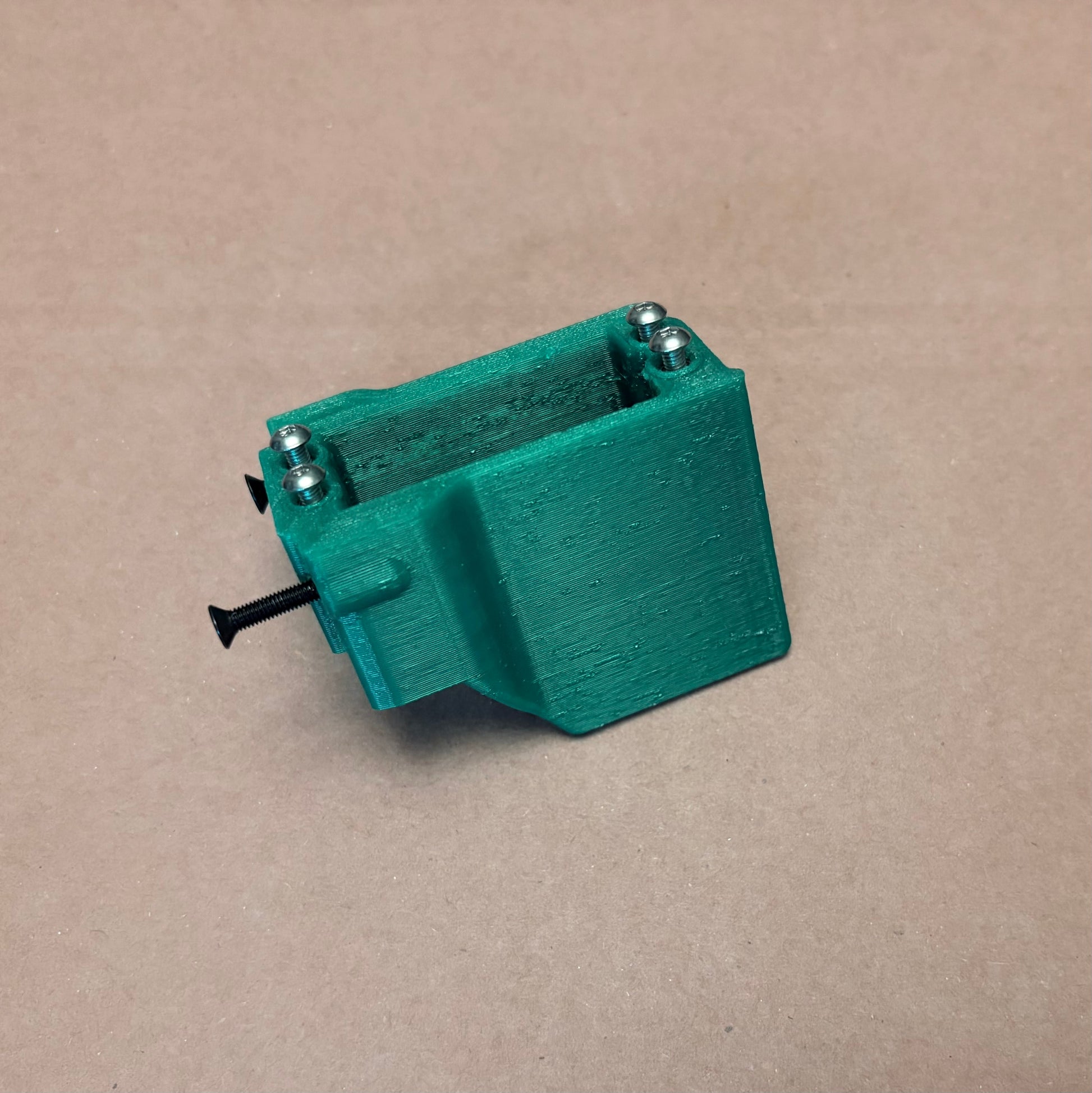

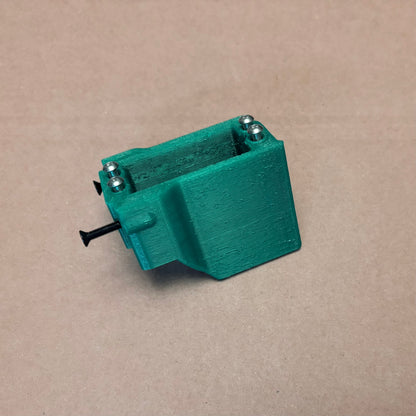

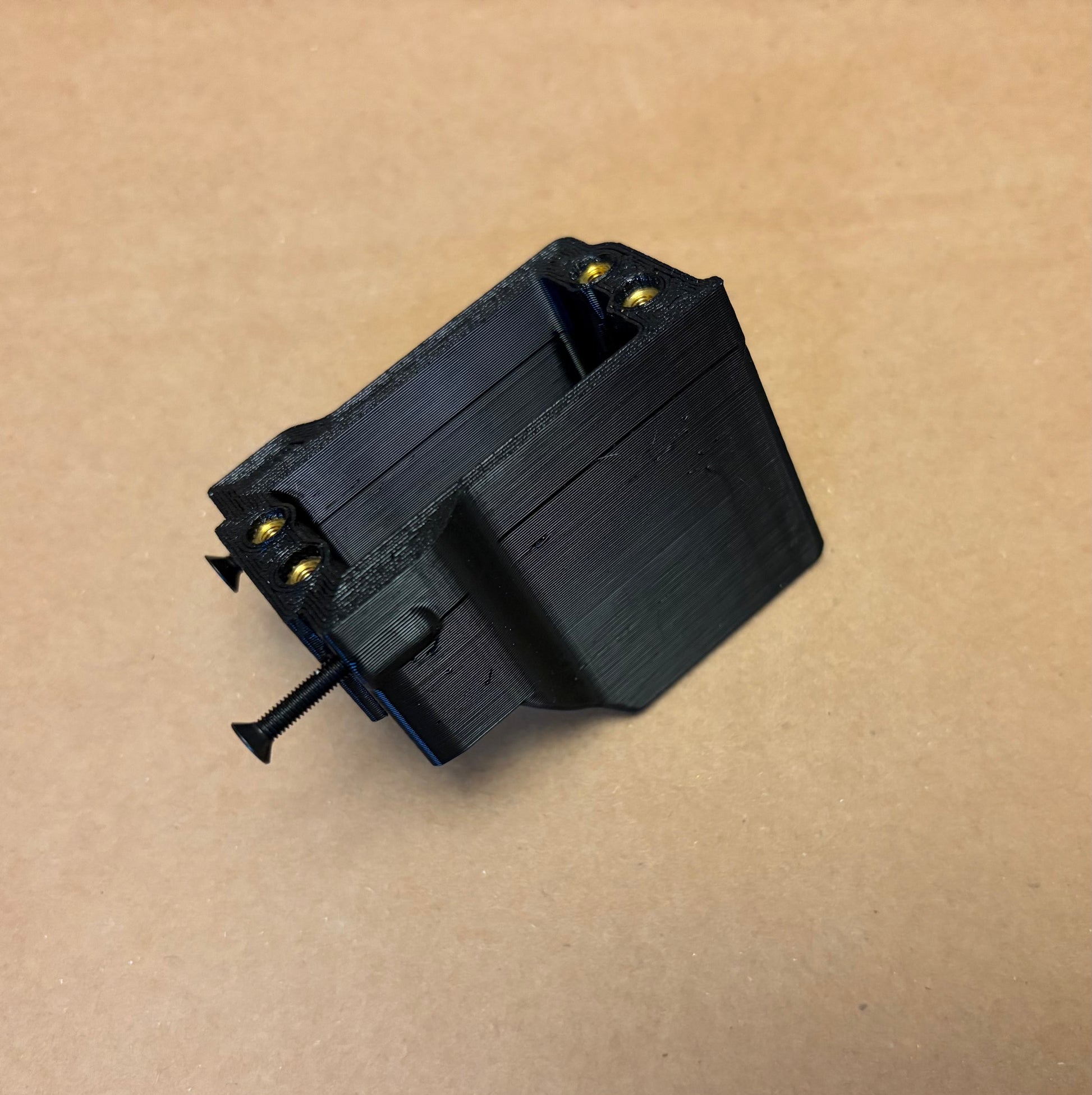

Mini Kraton Servo Mount (for factory chassis)

Mount a full size servo.   For most 1/10 scale RC cars and crawlers, the standard servo mounting pattern utilizes four holes spaced 48.5 mm to 50.5 mm apart from top to bottom and 10 mm wide (center-to-center). Due the varying difference is then long side, I split the difference and designed the part with a 49x10mm bolt spacing. This will allow it to fit both sizes of servos.

Purchase either the digital file or the servo mount that I printed. Please make the correct selection before ordering.

If you purchase the DIGITAL 3D FILE VERSION (You Print It At Home):  The part was design to have 3mm threaded inserts added to it. Keep in mind, you will need to add 3mm inserts. If you can not add the inserts, do not purchase the file. 3mm Hardware and Threaded inserts are required to complete the parts.

After you buy the 3D Digital File, you will receive an order confirmation email, followed by an email with a download link for the file.

WATCH THIS VIDEO
Full Size Servo in a Mini Kraton
https://youtu.be/1qVLZUBql3w

Tested on 3 full size servos. Guaranteed to fit almost all servos (but maybe you have a weird one).  Servo horn hook up is one you.  You’ll need to drill the bottom two holes on the chassis to allow the 3mm screws to fit.
